We create your gear as a 3D model or 2D profile!
Do you require the exact tooth geometry in 3D format or as a 2D profile for your manufacturing processes, such as:
- 5-axis milling (freeform milling)
- Wire EDM
- Laser cutting
- Base geometry for tool manufacturing
Or as a fundamental geometry for your simulation or FEM analysis?
We provide precise and application-oriented gear data tailored to your requirements.
We provide:

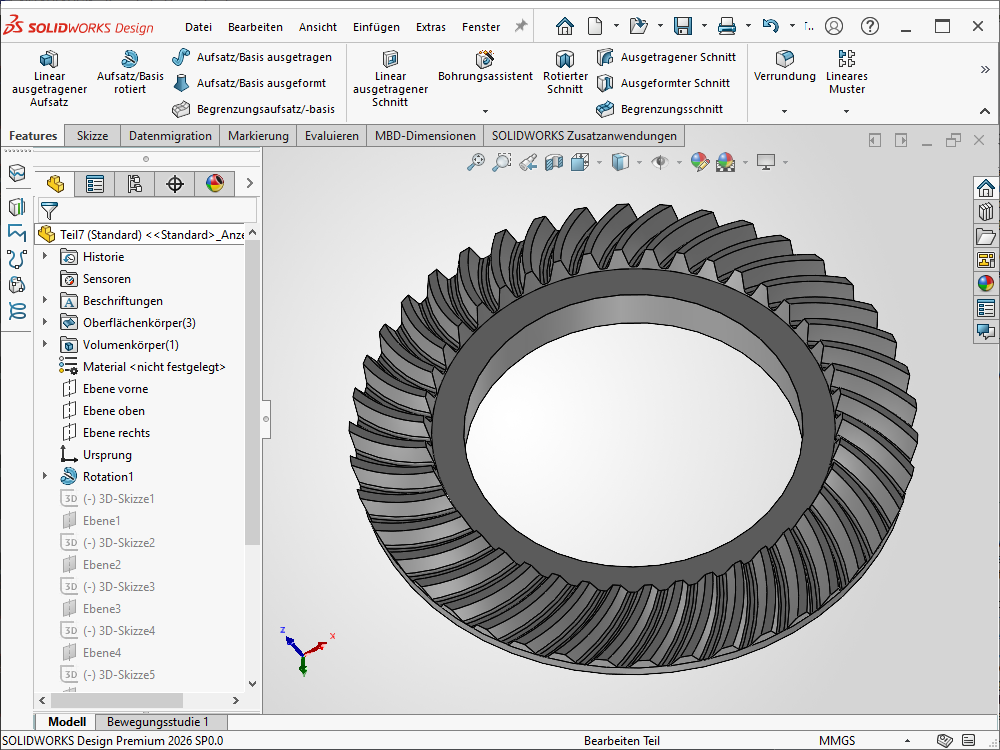

- 3D data for straight, helical, and spiral bevel gears

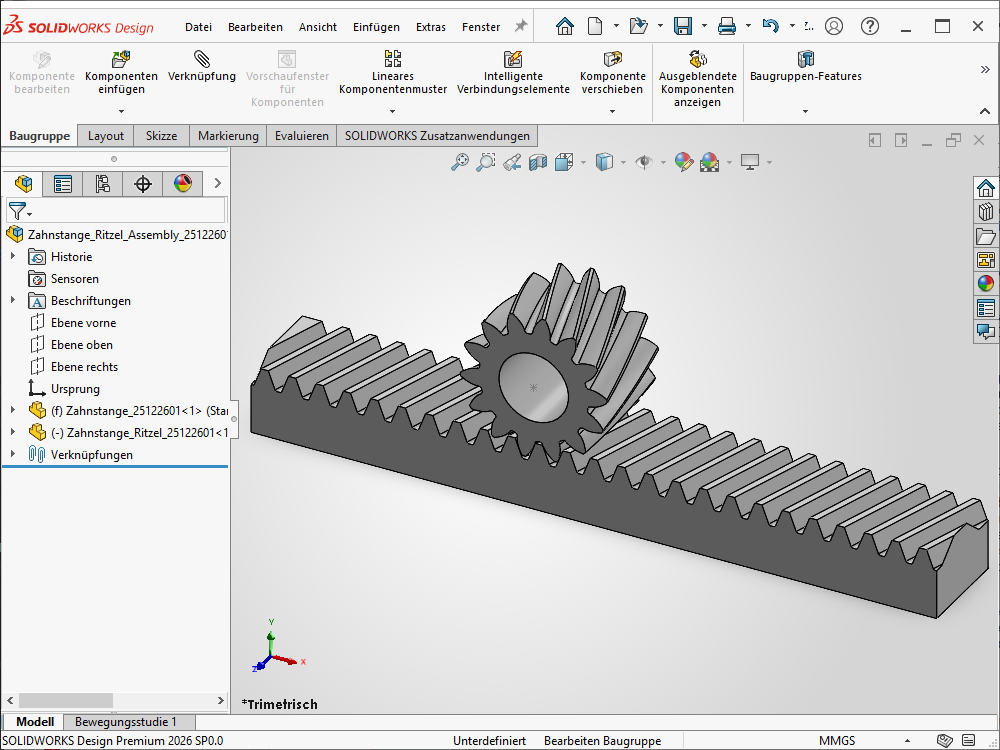

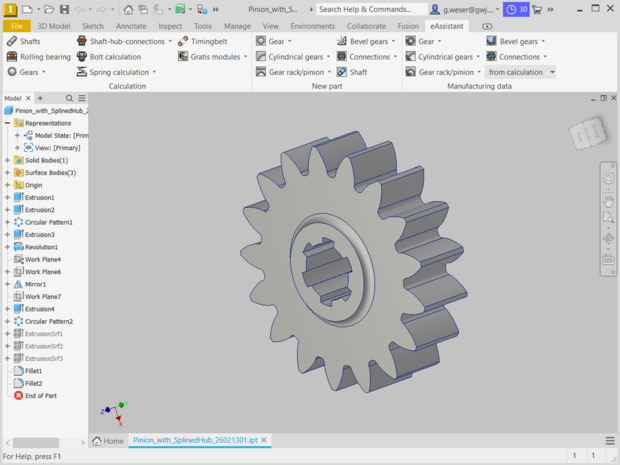

- Profile and 3D data for cylindrical gears
Additionally, you will receive (if required):
- A detailed calculation report
- A 3D surface model of the tooth space
- 3D guide and boundary curves to support CAM programming
- Tooth contact analysis (without load)
- Nominal data
