3D CAD Plugins

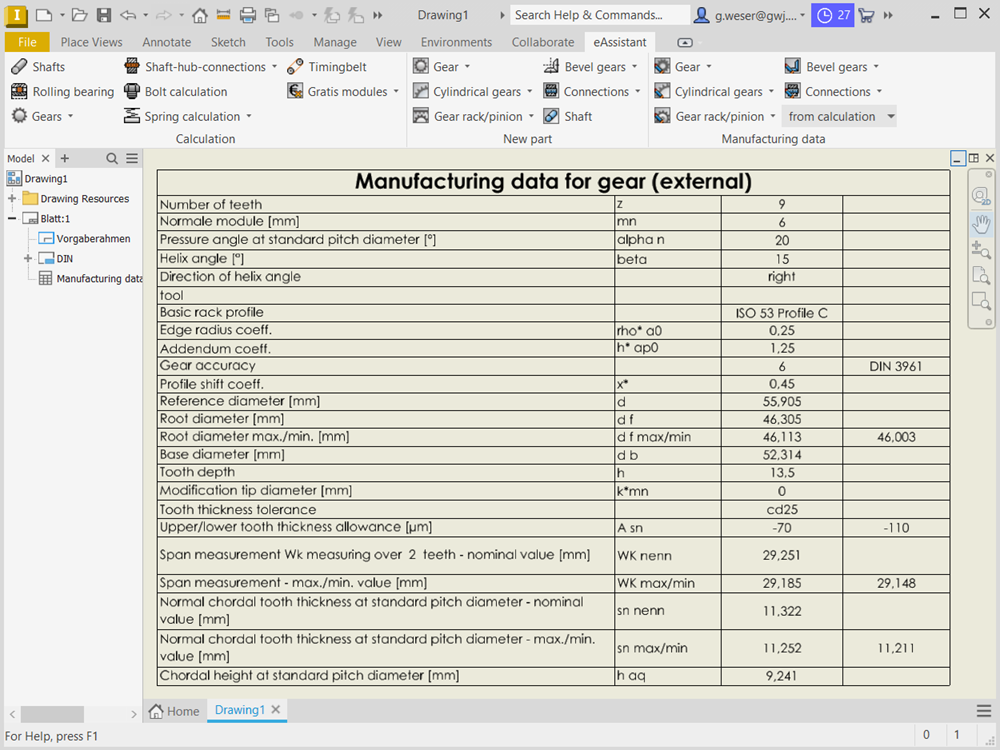

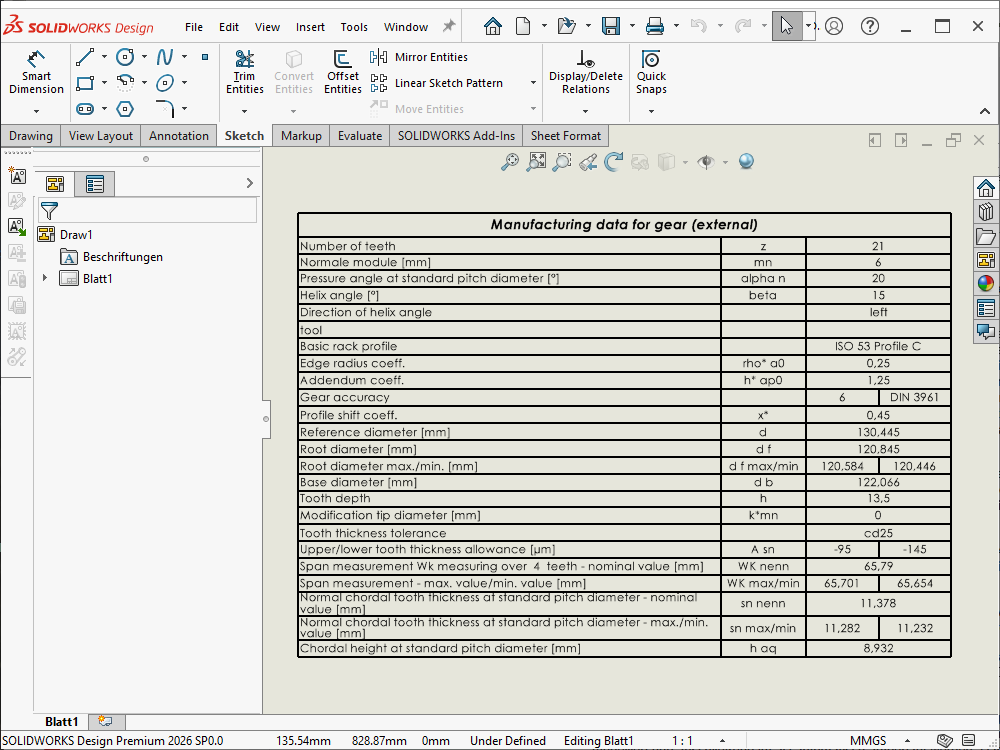

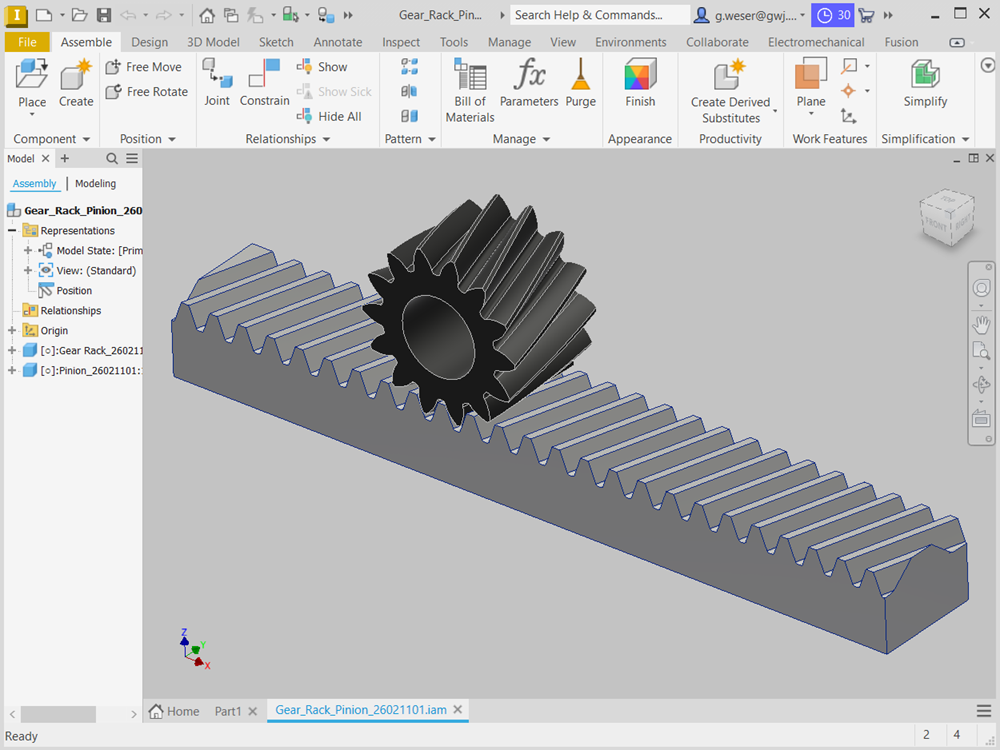

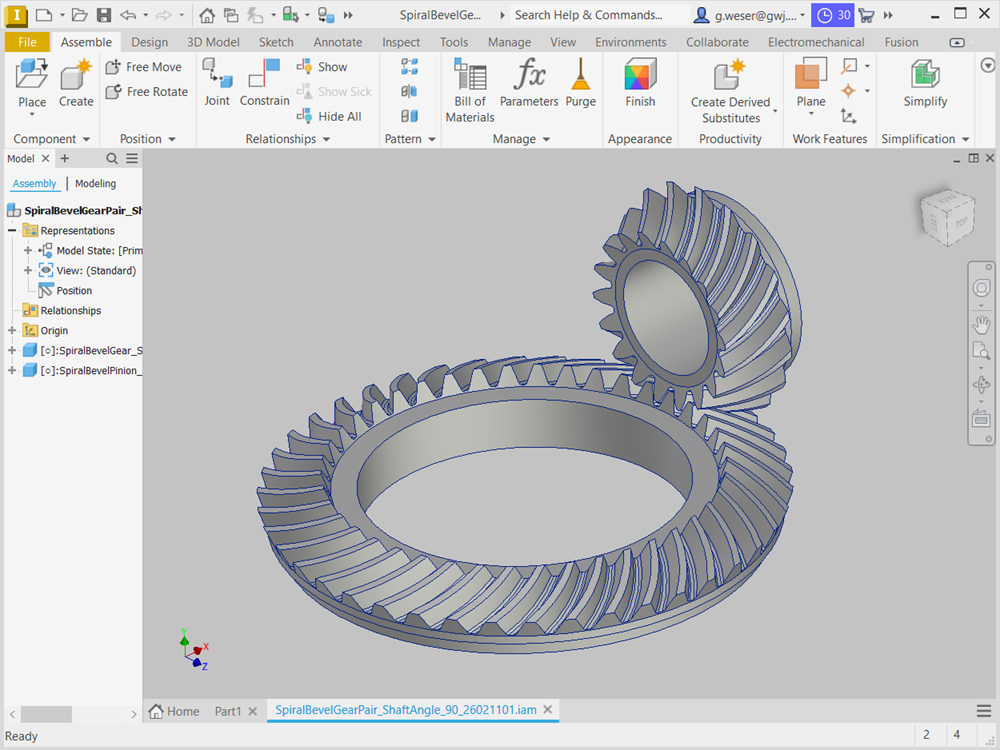

GWJ develops plugins for various CAD systems to enable a simple and fast integration of calculation and design. This provides users with an intelligent connection to their CAD system, such as SOLIDWORKS or Solid Edge, significantly increasing efficiency in the design and development process. For 2D CAD systems, the output is provided in the standard DXF format.

Further information on the CAD plugins for our web-based calculation software eAssistant and TBK, compatible with various 3D CAD systems, can be found on the respective eAssistant and TBK product websites.
