With the latest version of SystemManager, the powerful extension for GWJ’s calculation solutions eAssistant and TBK, integrating 3D STEP data as 3D FEM components into gear system simulations is now more efficient than ever.
- Improved automatic meshing:

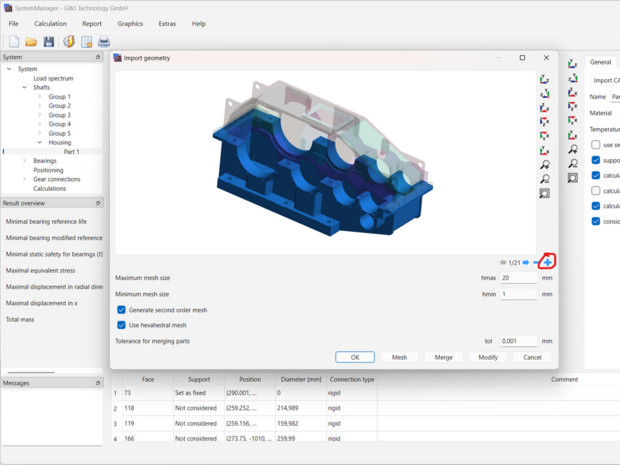

Optimized meshing of 3D FEM-based components during STEP import delivers more precise results while reducing manual effort. - Flexible STEP imports:
Import multiple STEP files sequentially and merge them directly with the initial import - making even complex assemblies easier to handle. - Enhanced modelling capabilities:
3D bearings can now be positioned on “elastic contact” surfaces, enabling more realistic modelling and simulation of complex components.
Complex geometries can be integrated into gear systems faster, more accurately, and with significantly less manual effort.
This means a smoother workflow from CAD data to simulation and more time for what really matters: engineering. Discover the latest SystemManager features and take your FEM-based gear system modelling to the next level.
A special thank you to Mr. Reisinger and RPT Tech GmbH for providing the CAD model of the gearbox housing.
