This software module enables the calculation and optimization of straight and helical bevel gears. It performs geometry calculations according to ISO 23509 for various tooth depth profiles, generating the actual tooth form including profile shift, tooth thickness modifications, backlash, and crowning. In addition, the module calculates load capacity in accordance with ISO 10300.
Features

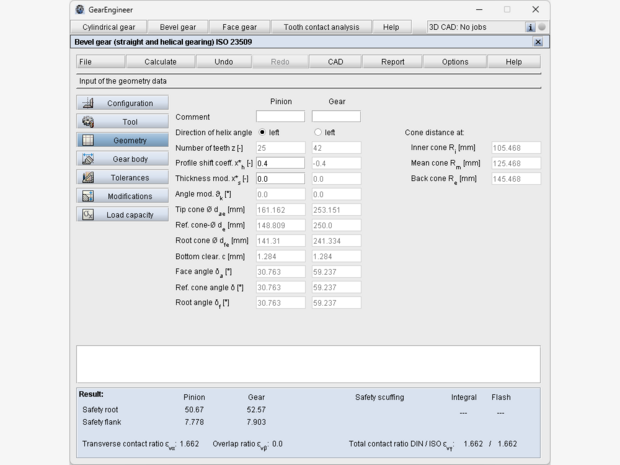

- Geometry of straight and helical bevel gears according to ISO 23509 and DIN 3971
- DIN bevel gears: tip cone, root cone and reference cone intersect in a common point (Gleason)
- Klingelnberg bevel gears: tip cone, root cone and reference cone are parallel (constant tooth depth)
- Standard depth: root cone and reference cone intersect in a common point (Gleason/Konvoid)
- Consideration of profile shift and thickness modification

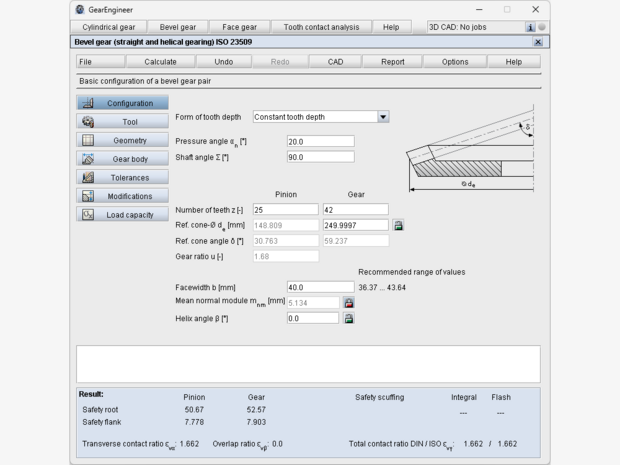

- Bevel gear pairs with shaft angle equal and unequal 90°, without offset

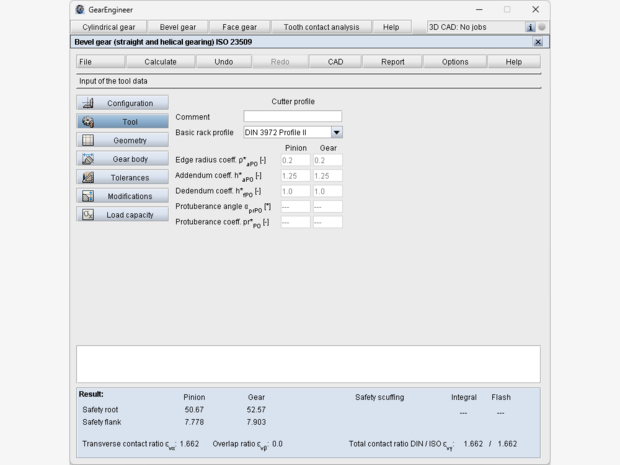

- Tool data can be specified individually
- Calculation of transverse contact ratio, overlap contact ratio and total contact ratio based on virtual spur gear toothing

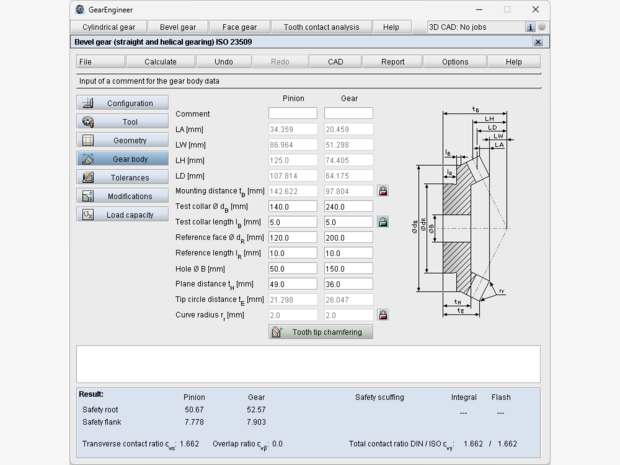

- Turning dimensions with lengths of cone and angles, calculation and direct input of mounting distance

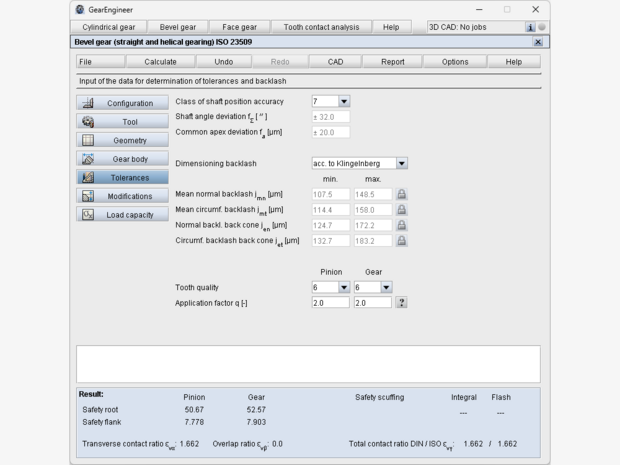

- Suggestions for backlash according to Klingelnberg or Niemann, backlash can be defined individually
- Determination of the tooth depth, tooth thickness and chordal tooth thickness
- Allowances according to DIN 3965 for deviations of several parameters; shaft angle and deviation of axis intersection
- Consideration of lead crowning

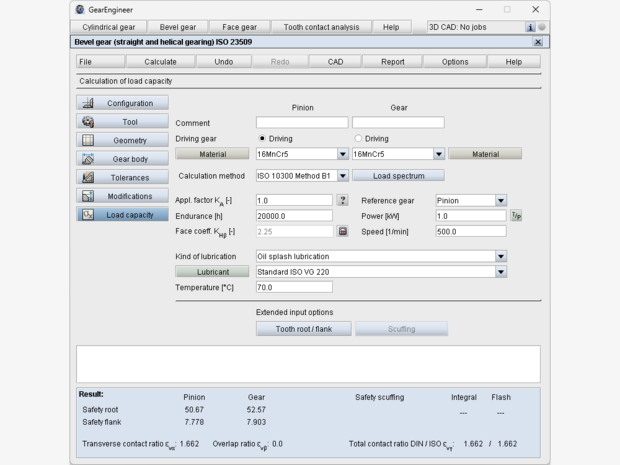

- Load capacity calculation according to ISO 10300
- Integrated material and lubricant database

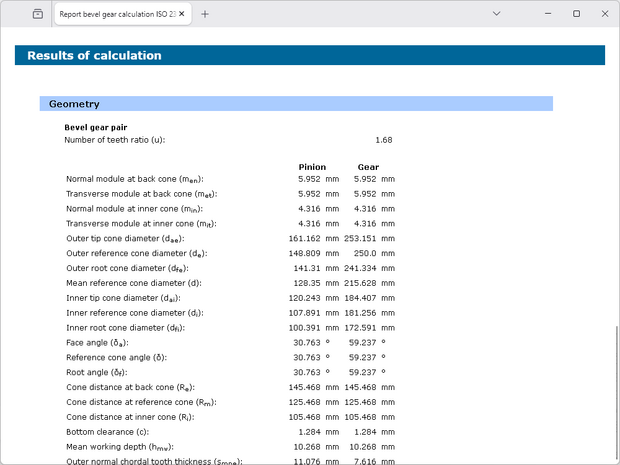

- Detailed calculation report in HTML and PDF format
- Output of CAD data: 3D STEP/IGES
